Earthing ek safety connection hai jo appliance ki metal body me leak hui bijli ko surakshit tareeke se zameen me bhej deta hai. Isse fridge, geyser ya metal cooler ko chhune par current ka jhatka nahi lagta, aur MCB ya RCCB ko fault aane par trip hone ka sahi raasta milta hai.
Ek electrician ke taur par maine 10+ saal ke field work me yeh dekha hai: log tiles, pop aur luxury interior par lakhon kharch kar dete hain, par earthing ko “baad me dekhenge” par chhod dete hain.
Is guide me hum simple Hindi me samjhenge ki earthing kaise kaam karti hai, pipe vs chemical earthing me kya farq hai, kitna kharcha aata hai, aur IS 732, IS 3043 aur CEA Regulations 2023 ke hisaab se kya niyam hain.
Short Mein (Key Takeaways)
- Earthing Ka Maksad: Fault aur leakage current ko zameen (earth) tak ka zero-resistance raasta dena.
- Ghar Ke Liye Best Type: Aam ghar ke liye GI Pipe Earthing kaafi hai; sookhi/pathreeli zameen aur costly electronics ke liye Chemical Earthing behtar hai.
- Earth Wire Standard: Hamesha pure copper wire use karein, jiska insulation Green ya Green-Yellow ho.
- Resistance Target: Ghar ki earthing ka resistance 5 Ohm se kam hona chahiye. Saal me ek baar earth tester se check karwayein.
- RCCB + Earthing: Earthing ke sath RCCB ka hona zaroori hai. Dono milkar hi insaan ko jaanleva shock se bachate hain.
Earthing Kya Hai Aur Yeh Kaam Kaise Karti Hai?
Earthing ka matlab hai ghar ke electrical appliances ke un metal parts ko (jinme normal condition me current nahi hona chahiye—jaise geyser ka tank, cooler ki body, washing machine ka drum), ek copper wire ke zariye zameen me gadhe huye electrode (pipe ya rod) se jod dena.
Earthing Kaam Kaise Karti Hai? (Shock Se Bachav)
Maan lijiye aapke geyser ka internal heating element andar se break hokar metal tank se touch ho gaya:
- Agar Earthing Nahi Hai: Geyser ki poori metal body aur nal ka paani “Live” (current se bhar) ho jayega. Jaise hi koi insaan geyser ya nal ko chhuhega, current uske sharir se hokar zameen me jayega—jisse jaanleva shock lagta hai.
- Agar Proper Earthing Hai: Jaise hi coil body se touch hogi, current ko green earth wire ke zariye zameen me jane ka aasan raasta mil jayega. High leakage current behte hi distribution board me lagi MCB ya RCCB usi millisecond me trip hokar line cut kar degi.
Phase, Neutral Aur Earth Me Kya Farq Hai?
| Feature | Phase (Live Wire) | Neutral Wire | Earth Wire |
|---|---|---|---|
| Mukhya Kaam | Current ko appliances tak pahunchana | Current ko wapas source tak le jana | Sirf fault aur leakage current ko zameen me bahana |
| Normal Time Current | Haan (Continuous current) | Haan (Return current) | Nahi (Normal me zero current) |
| Standard Colour Code | Red / Yellow / Blue | Black | Green ya Green-Yellow |
⚠️ Warning: Neutral aur Earth wire ko aapas me kabhi mix na karein. Neutral ki jagah earth wire ko return banana ya socket me neutral-earth short karna Indian Standard ke khilaf aur behad khatarnak hai.
Ghar Mein Earthing Kyun Zaroori Hai?
1. Electric Shock Se Complete Bachav
Jis appliance ki body metal ki hoti hai (geyser, iron, cooler, fridge), unme insulation fail hone par earthing hi parivar ko electric shock se bachati hai.
2. Earthing Aur RCCB Ka Rishta
RCCB leakage current ko detect karke power cut karta hai. Lekin solid earthing hone par RCCB body ko haath lagane se pehle hi trip ho jata hai. Bina earthing ke RCCB tab trip hota hai jab current insaan ke sharir se guzar chuka hota hai. Dono milkar hi complete protection dete hain: padhein — RCCB Kya Hai Aur Ghar Me Lagana Kyu Jaruri Hai?.
Wiring aur breaker selection samajhne ke liye dekhein — MCB Selection Guide: Ghar Ke Liye Sahi MCB Kaise Chune?.
3. Metal Body Cooler Aur Geyser Safety
Garmiyon me metal body cooler me current aana sabse aam shikayat hai kyunki paani aur bijli dono sath hote hain. Naya cooler lene se pehle yeh guide zaroor padhein — Cooler Kharidne Se Pehle Kya Dhyan De?.
Bathroom me geyser sabse sensitive appliance hota hai. Fitting se pehle dekhein — Geyser Lagwane Se Pehle Kya Dhyan Rakhe? aur family ke liye best model chunne ke liye dekhein — Best Geyser for Small Family in India.
4. Costly Electronics Ki Safety
Voltage surge aur spike se TV, computer aur inverter AC ke PCB jalne ka dar rehta hai. Voltage fluctuation ke solution ke liye padhein — Stabilizer Kya Hota Hai? AC, Fridge, TV Full Guide.
Earthing Ke Types: Pipe, Plate Aur Chemical Earthing

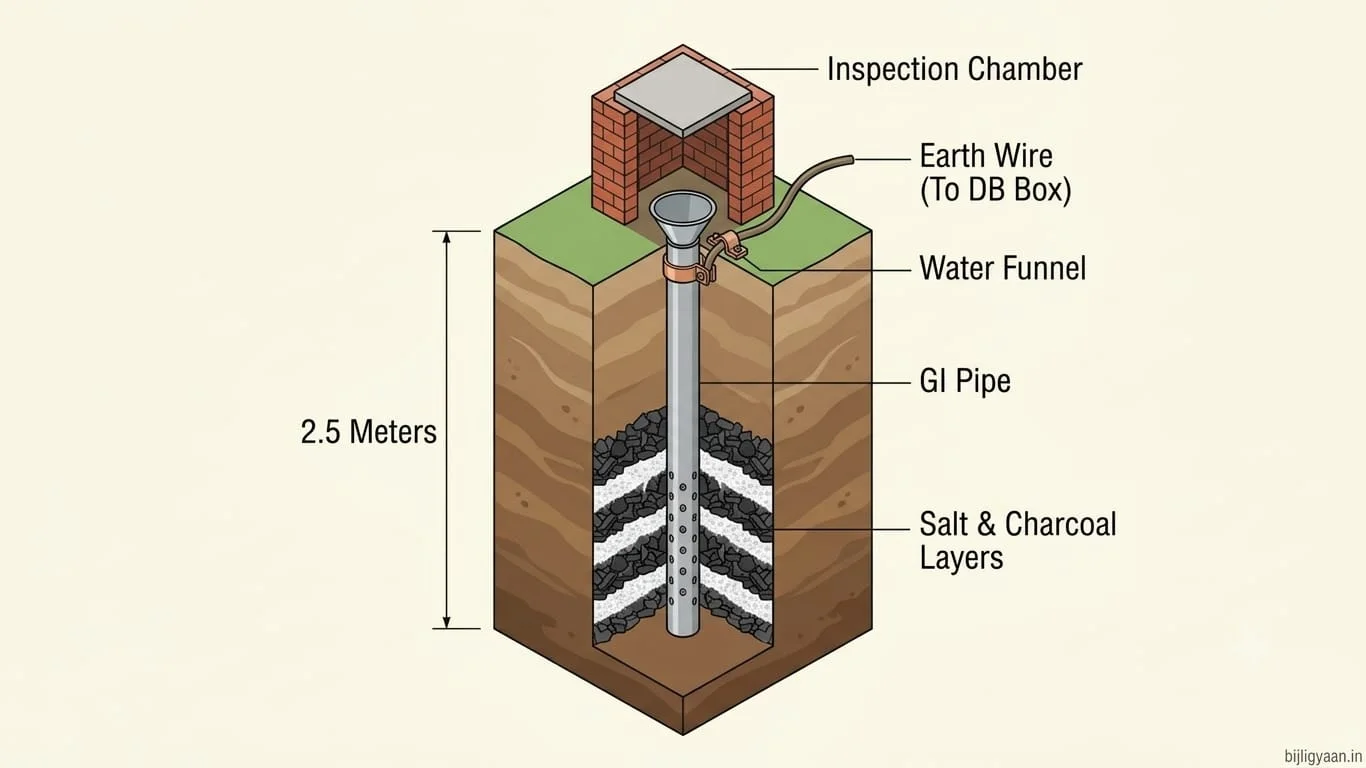

1. Pipe Earthing (GI Pipe)
India me residential gharon ke liye sabse common aur economical choice. Isme Galvanised Iron (GI) ki perforated pipe zameen me 8 se 10 feet gehraai me daali jaati hai aur charo taraf koyla-namak bhara jata hai.

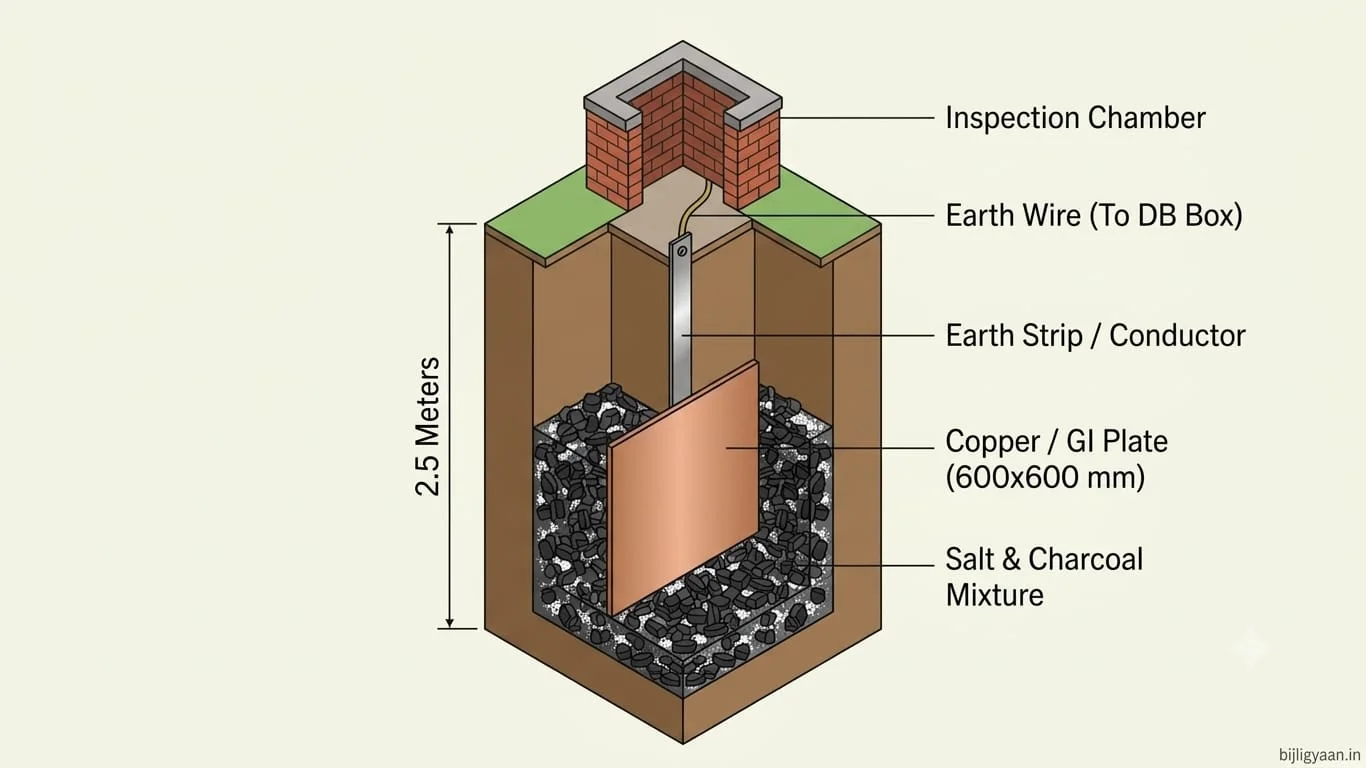

2. Plate Earthing
Isme copper ya GI ki plate pit me dabayi jaati hai. Yeh commercial panels aur heavy load buildings me use hoti hai.

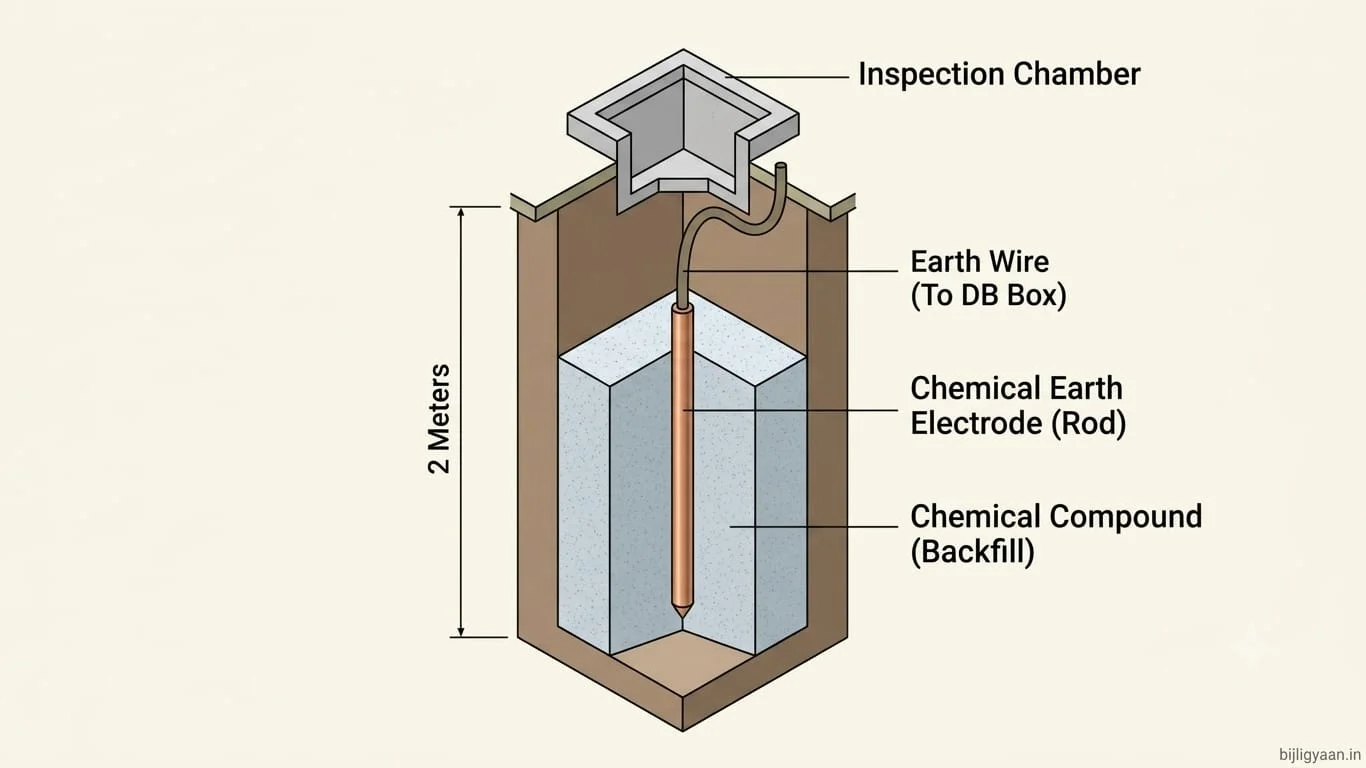

3. Chemical Earthing (Modern & Low Maintenance)
Isme copper-bonded rod ke charo taraf conductive compound (Bentonite compound) dala jata hai jo saal bhar moisture banaye rakhta hai. Sookhi, pathreeli zameen aur smart homes ke liye yeh best solution hai.
Earthing Lagwane Ka Kharcha (2026 Estimate)
| Earthing Type | Approx Kharcha (Material + Labour) | Kahan Best Hai? | Maintenance |
|---|---|---|---|
| GI Pipe Earthing | ₹3,000 – ₹5,000 | Normal ghar, aam residential wiring | Garmi me paani daalna zaroori |
| Plate Earthing | ₹6,000 – ₹9,000 | Badi kothi, heavy commercial load | Regular moisture check |
| Chemical Earthing | ₹8,000 – ₹14,000 | Sookhi zameen, IT setup, sensitive electronics | Low maintenance (saal me 1 baar test) |
Indian Standards Aur CEA Regulations: Earthing Ke Rules
- IS 3043:2018 (Code of Practice for Earthing): Yeh standard electrode sizing, soil resistivity, bonding aur safe earth pit construction ko define karta hai.
- IS 732:2019 (Wiring Code of Practice): Yeh enforce karta hai ki har circuit me continuous protective conductor (earth wire) Green ya Green-Yellow colour me ho, aur poore ghar ka load theek se planned ho — Home Electrical Load Calculation.
- CEA Regulations 2023: Central Electricity Authority ke updated niyam mandate karte hain ki har consumer installation par Residual Current Device (RCCB/RCD) laga hona chahiye aur supply shuru karne se pehle earthing aur insulation certified honi chahiye.
Earth Resistance Kitna Hona Chahiye?
Bureau of Indian Standards ke mutabiq residential installations ke liye earth resistance 5 Ohm se kam hona safe maana jata hai (ideal 1 se 3 Ohm). Agar resistance 8–10 Ohm se zyada aaye toh pit me nami ya chemical compound ki kami hoti hai.
Earth Pit Banane Ka Step-by-Step Tareeka
- Location Ka Selection: Makan ki deewar se 1.5 se 2 meter door aisi jagah chunein jahan zameen me natural nami rehti ho.
- Pit Digging: Kam se kam 8 se 10 feet (2.5–3 meter) gehra gaddha khodein.
- Electrode Placement: GI pipe ya copper-bonded chemical rod ko center me seedha khada karein.
- Layering: Pipe ke charo taraf koyla aur namak (ya chemical compound) ki alternate layers bharein.
- Connection & Clamp: Pipe ke top par brass/copper clamp se 8 SWG copper wire ya GI strip ko mazbooti se tight karein.
- Inspection Chamber: Zameen ke upar eent (brick) ka chota chamber banayein jisme dhakkan laga ho, taaki garmiyon me paani dala ja sake aur resistance check ho sake.
Earth Wire Size Aur Colour Coding
- Colour: Hamesha Green ya Green-Yellow insulation wali wire use karein.
- Internal Sub-Circuits: Normal light/fan circuit me 1.0 ya 1.5 sq mm copper earth wire lagti hai. Power socket (16A) ke liye minimum 2.5 sq mm copper wire honi chahiye.
- Main DB Se Earth Pit: Distribution board se pit tak minimum 4.0 sq mm se 6.0 sq mm copper wire ya GI strip lagayi jaati hai.
Field Case Study: Geyser Chhute Hi Jhatka Lagna
Pichle saal ek customer ke ghar par washing machine aur geyser ki body chhune par tez jhanjhanahat ho rahi thi. Unke panel me MCB aur RCCB dono lage the, lekin RCCB trip nahi ho raha tha.
Jab maine Digital Earth Tester se test kiya toh:
- Socket me 3-pin plug toh laga tha, lekin switchboard ke peeche earth wire ka loop cut tha.
- Ghar ke bahar jo puraana GI pipe pit bana tha, usme saalon se paani na daalne ke kaaran mitti sookh kar patthar ho chuki thi aur resistance 48 Ohm dikha raha tha!
Solution: Humne board ke internal earth loop ko theek kiya, purane pit me nami restore ki aur earth resistance ko wapas 2.8 Ohm par laaye. Iske baad testing bulb lagate hi RCCB turant trip ho gaya aur geyser ka shock 100% khatam ho gaya.
Solar Aur Smart Energy Setup Me Earthing
Agar aapke ghar par solar panel laga hai ya lagwane ka soch rahe hain, toh solar setup ke liye 3 alag dedicated earthing pit zaroori hote hain (Inverter ke liye, Structure ke liye, aur Lightning Arrester ke liye):
- Poori costing samajhne ke liye padhein — 3 KW Solar System Price in India with Subsidy 2026
Ghar Ki Earthing Check Kaise Karein?
- Multimeter Test (Quick Check): Multimeter ko AC Voltage par set karein. Phase aur Neutral ke beech 230V aana chahiye. Phase aur Earth ke beech bhi lagbhag 230V aana chahiye. Aur Neutral aur Earth ke beech voltage 2V se kam hona chahiye.
- Earth Tester (Accurate Method): Certified electrician se Earth Tester lagwakar ground resistance naapein. Reading 5 Ohm ke andar aani chahiye.
Aksar Pooche Jaane Wale Sawal (FAQs)
1. Earthing kya hoti hai aur ghar me kyun zaroori hai?
Earthing ek protection wiring hai jo appliances ke metal body se leak huye current ko zameen me safely bhej deti hai, jisse insaan ko shock nahi lagta aur aag lagne ka khatra khatam ho jata hai.
2. Earthing aur Neutral me kya farq hai?
Neutral wire running current ko appliance se wapas power station le jati hai. Earth wire me normal condition me koi current nahi hota; yeh sirf fault aane par accident bachane ke liye kaam karti hai.
3. Ghar ke liye safe earth resistance kitna hona chahiye?
Ghar ke liye earth resistance 5 Ohm se kam hona chahiye. Jitna kam resistance hoga (jaise 1–2 Ohm), utni hi tez protection milegi.
4. Pipe earthing aur Chemical earthing me kaunsi behtar hai?
Normal budget aur nami wali mitti ke liye GI Pipe earthing sasti aur acchi hoti hai. Sookhi, pathreeli mitti aur smart devices ke liye low-maintenance Chemical earthing best hoti hai.
5. Kya bina earthing ke RCCB kaam karta hai?
Bina earthing ke RCCB tab trip hota hai jab current insaan ke sharir ko touch karke guzar jata hai. Lekin solid earthing hone par RCCB appliance ki body ko haath lagane se pehle hi line cut kar deta hai.
Electrical Safety Disclaimer
Yeh guide educational purpose aur safety awareness ke liye likhi gayi hai. Main earthing pit khodne, distribution board par live kaam karne ya electrode clamp lagane ka kaam hamesha licensed electrician se hi karwayein.
