Ghar ki bijli wiring me sabse badi laparwahi galat MCB selection ki hoti hai. Log laakhon rupaye lagakar inverter AC, luxury geyser aur refrigerator lagwate hain, lekin unhe protect karne wali MCB “jo dukan par mil jaye” wo utha late hain.
Main pichle 10+ saal se electrician ka kaam kar raha hoon. Sach bataun toh field me aadhe se zyada wiring pighalne aur short circuit se aag lagne ke cases galat MCB rating lagane ki wajah se aate hain. Log samajhte hain ki MCB ek choti si cheez hai, koi bhi chalegi—lekin ye choti laparwahi poore ghar ki wiring ko khatre me daal deti hai.
Is complete guide me simple Hindi bhasha me samjhenge ki MCB kya hoti hai, B-Type vs C-Type me kya farq hai, har appliance ke liye sahi MCB selection kaise karein, aur MCB baar baar kyu trip hoti hai.
MCB Kya Hai Aur Yeh Kaam Kaise Karti Hai?
MCB (Miniature Circuit Breaker) ek automatic electrical safety switch hai jo circuit me overload ya short circuit hone par bijli ka flow milliseconds ke andar turant kaat deta hai.
Socho yeh aapke ghar ka Chowkidar hai. Jaise hi current safe limit se upar jata hai ya phase aur neutral aapas me touch hote hain, MCB switch ko niche gira kar (trip hokar) wiring ko aag lagne se bacha leti hai.
⚠️ Field Reality: MCB sirf aur sirf wiring aur appliances ko aag lagne se bachati hai. Insaan ko jaanleva current ya shock se bachane ke liye RCCB (Residual Current Circuit Breaker) lagana anivarya hota hai. Dono milkar hi complete safety dete hain. Detail samajhne ke liye padhein — RCCB Kya Hai Aur Ghar Me Lagana Kyu Jaruri Hai?
Purane Fuse Ke Mukable MCB Kyu Zaroori Hai?
Purane zamane me porcelain ke rewirable fuse lagte the. Jab bhi overload hota tha, wire jal jati thi aur bar-bar nayi taar bandhni padti thi. Sabse bada khatra ye tha ki log moti taar baandh dete the jisse fuse toh nahi udta tha, par deewar ke andar wiring jal jati thi. MCB me bas switch wapas ON karna hota hai—ye 100% safe aur convenient hai.
Field Case Study: Galat MCB Lagane Ka Asli Khatra
Pichle mahine main ek site par gaya jahan 2 saal purane naye makan ki concealed wiring jal kar poori tarah dhuan ho chuki thi. Ghar ke malik pareshan the ki naya ghar hote huye bhi aag kaise lagi.
Jab maine board check kiya toh sachai samne aayi: electrician ne 1.5 sq mm ki wire par 32A ki MCB laga di thi!
1.5 sq mm copper wire ki safe carrying capacity lagbhag 14–15 Ampere hoti hai. Jab kamre me heavy appliance chale, toh wire 20A current par pighalne lagi. Lekin 32A ki MCB trip hi nahi hui, kyunki use trip hone ke liye 32A se zyada current chahiye tha.
🔴 Electrician’s Golden Rule: MCB ki rating hamesha wire ki carrying capacity se kam honi chahiye, wire ke upar nahi. Badi rating ki MCB zyada protection nahi deti, balki wiring ko jalane ka rasta kholti hai.

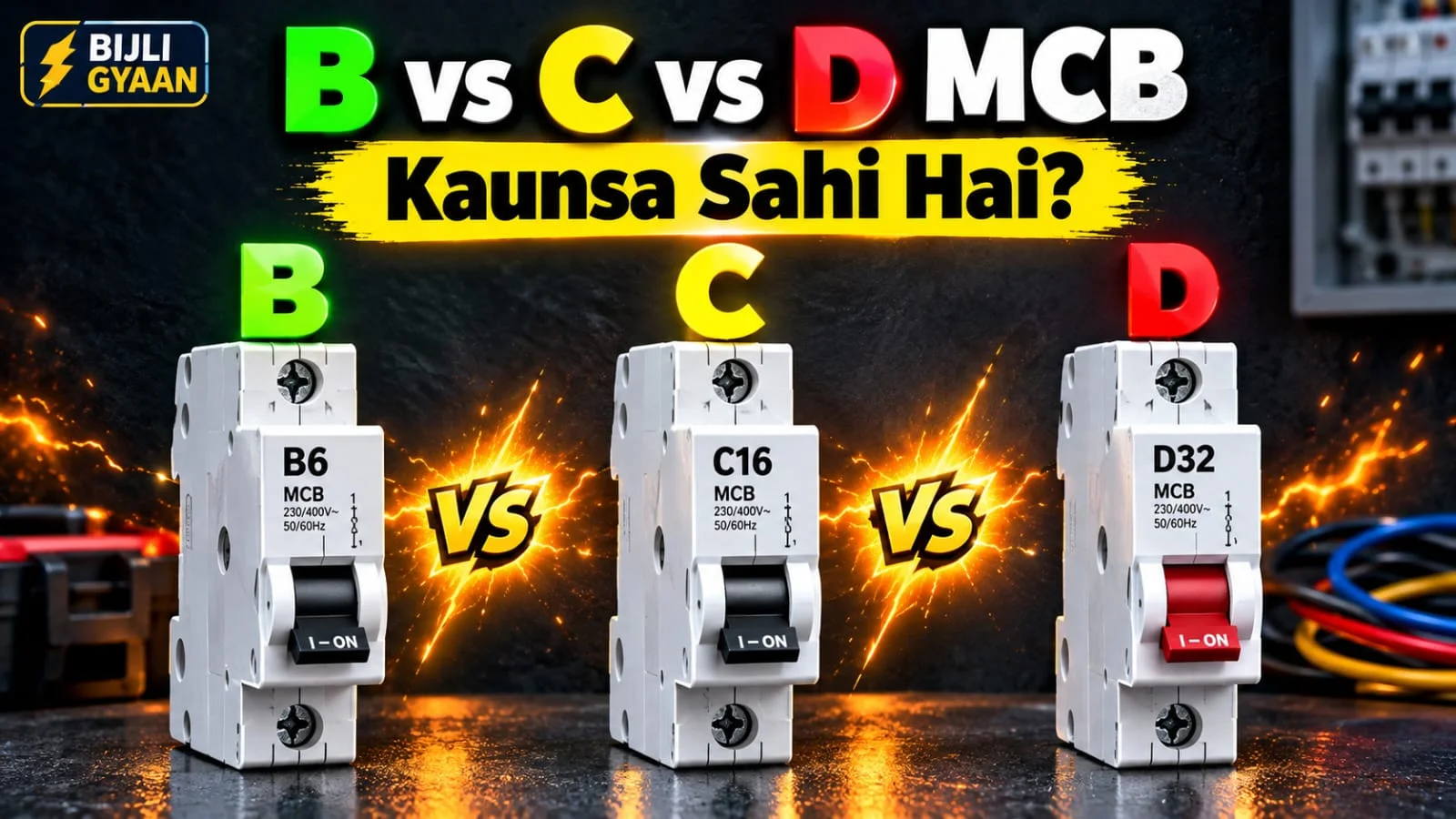

MCB Ke Types: B-Type, C-Type Aur D-Type Me Kya Antar Hai?
Market me MCB mainly teen tripping curves me aati hai. Har curve ka kaam alag hota hai:
| MCB Type | Tripping Current Range | Kahan Use Karein? | Suitable Appliances |
|---|---|---|---|
| B-Type | Full load ka 3 se 5 guna | Domestic lighting & resistive circuits | Normal Lights, Ceiling Fans, TV, Computer |
| C-Type | Full load ka 5 se 10 guna | Inductive loads (Motors & Compressors) | Inverter AC, Refrigerator, Geyser, Water Pump |
| D-Type | Full load ka 10 se 20 guna | Heavy industrial loads | Welding machines, X-Ray equipment, Heavy motors |
Ghar Ke Liye B-Type vs C-Type Ka Simple Rule:
- B-Type: Yeh thoda sa bhi fault aane par bohot jaldi trip hoti hai. Isliye sensitive lighting aur fan circuits par B-Type lagayi jaati hai.
- C-Type: Refrigerator, water motor aur AC shuru hote waqt pehle 1–2 second ke liye bohot high current (inrush starting current) kheenchti hain. Agar in par B-Type laga di jaye toh motor on hote hi tripping shuru ho jayegi. Isliye in appliances ke liye C-Type lagana standard engineering rule hai.
MCB Selection Chart For House Wiring
MCB ka selection hamesha wire ke size (sq mm) aur load ke hisaab se hona chahiye. Ghar ke wiring design ke liye is certified table ko follow karein:
| Circuit Type | Recommended MCB Rating | Sahi Wire Size (Copper) | Tripping Curve |
|---|---|---|---|
| Lighting & Fans | 6A ya 10A | 1.0 – 1.5 sq mm | B-Type |
| Bedroom Power Sockets (6A/16A) | 16A | 2.5 sq mm | C-Type |
| Kitchen Power Points & Microwave | 16A ya 20A | 2.5 – 4.0 sq mm | C-Type |
| Geyser (15L - 25L / 2000W) | 16A | 2.5 – 4.0 sq mm | C-Type |
| 1.0 Ton / 1.5 Ton Inverter AC | 16A ya 20A | 4.0 sq mm | C-Type |
| 2.0 Ton AC / 2HP Water Motor | 20A ya 25A | 4.0 sq mm | C-Type |
| Main Incomer (Main Board) | 32A, 40A ya 63A | 6.0 – 10.0 sq mm | DP (Double Pole) |
Dhyan dein: 1.5 Ton Inverter AC ke liye kabhi bhi 32A MCB na lagayein; 16A ya maximum 20A C-Type bilkul safe rating hoti hai. Geyser ke connection aur MCB placement ko samajhne ke liye padhein — Geyser Lagane Se Pehle Kya Dhyan Rakhe?.
MCB Rating Kaise Calculate Karein? (Step-by-Step Formula)
Agar aap kisi circuit ka load jante hain, toh MCB rating calculate karne ka formula behad aasan hai:
$$\text{Current (Ampere)} = \frac{\text{Total Load (Watts)}}{\text{Voltage (230V)}}$$
Practical Example:
- Total Watts Jodein: Maan lijiye ek room circuit par 1 Ceiling Fan (75W) + 2 LED Bulbs (20W) + 1 TV (120W) + 1 Laptop (65W) = Total 280 Watts.
- Current Nikalein: $280 \div 230 = 1.21\text{ Ampere}$.
- Safety Margin (25%) Add Karein: $1.21 \times 1.25 = 1.51\text{ Ampere}$.
- Nearest Standard MCB Chunein: Market me minimum standard rating 6A hoti hai, isliye is room ke liye 6A B-Type MCB lagana best rahega.
📊 Agar aapko poore ghar ka load nikalna hai taaki sahi main switch lag sake, toh yeh step-by-step guide padhein — Home Electrical Load Calculation: Ghar Ke Liye Kitna Load Chahiye.
MCB Baar Baar Kyu Trip Hota Hai? (Badi Wajah Aur Solution)
Agar aapke ghar ki MCB switch baar baar niche gir rahi hai (trip ho rahi hai), toh use zabardasti patti ya tape lagakar bandh na dein. MCB trip hona is baat ka saboot hai ki aapka system wiring ko jalne se bacha raha hai.
Trip hone ki 4 mukhya wajah hoti hain:
1. Circuit Overload (Zaroorat Se Zyada Load)
Jab ek hi line par ek sath heavy appliances (jaise AC, geyser aur room heater) chalaye jaate hain, toh wire garam hone lagti hai. Agar circuit 16A ka hai aur total current 18A ho gaya, toh MCB 2 se 5 minute chalne ke baad thermal overload se trip ho jayegi.
- Solution: Heavy appliances ke liye alag-alag dedicated circuit aur MCB banayein.
2. Short Circuit (Phase Aur Neutral Ka Milna)
Jab phase (live) wire aur neutral wire bina kisi resistance ke aapas me touch ho jati hain, toh instant high current flow hota hai. Is halat me MCB on karte hi turant ‘chatak’ awaz ke sath trip ho jati hai.
- Solution: Switchboard ya appliance ka plug khol kar dekhein ki koi wire pighal kar dusre se touch toh nahi ho rahi.
3. Appliance Me Internal Coil Fault
Kayi baar wiring theek hoti hai lekin appliance (jaise purana geyser ka heating element ya motor ki coil) andar se body-short ho jati hai. Jaise hi aap us specific appliance ka switch dabate hain, MCB turant trip ho jati hai.
- Solution: Sabhi devices ke plug nikalein aur ek-ek karke check karein ki kis device ko on karne par MCB girti hai.
4. Dheele Connections Aur MCB Ki Internal Ageing
MCB box ke andar terminal screw dheele hone par sparking aur continuous heat banti hai, jisse MCB bina kisi fault ke bhi trip hoti hai. Saath hi, 10–12 saal purani MCB ki internal bimetallic strip weak ho jati hai.
- Solution: MCB ke terminal screws ko screwdriver se properly tight karein aur purani MCB ko replace karein.
MCB Kharidte Waqt In 3 Cheezon Ka Dhyan Rakhein
- Breaking Capacity (kA Rating): MCB ke body par ek rectangle box me 6000 ya 10000 likha hota hai (iska matlab 6kA ya 10kA hota hai). Sub-circuits ke liye kam se kam 6kA aur Main Panel ke liye 10kA breaking capacity wali MCB hi kharidein. Sasti 3kA MCB short circuit par blast ho sakti hai.
- Poles Ka Sahi Selection: Sub-circuits ke liye Single Pole (SP) ya SPN lagayein, lekin Main Distribution Board par phase aur neutral dono ko ek sath cut karne ke liye hamesha Double Pole (DP) MCB hi chunein.
- Voltage Protection: MCB sirf over-current aur short circuit se bachati hai, voltage upar-niche hone par nahi. Apne costly AC aur fridge ko voltage surge se bachane ke liye dekhein — Stabilizer Kya Hota Hai? Kya Har Ghar Me Lagana Jaruri Hota Hai?.
Aksar Pooche Jaane Wale Sawaal (FAQs)
1. 1.5 Ton AC ke liye kitne Ampere ki MCB lagani chahiye?
1.5 Ton Inverter AC ke liye 16A ya maximum 20A C-Type MCB lagayi jaati hai, jiske sath 4 sq mm copper wire hona zaroori hai. 1.5 Ton AC par 32A MCB lagana wiring ke liye khatarnak hota hai. (Agar AC ki bijli khapat samajhni ho toh padhein — 5 Star AC vs 3 Star AC vs Inverter AC).
2. Kya 16A MCB poore ghar me har jagah laga sakte hain?
Nahi. Light aur fan circuits ke liye 6A ya 10A B-Type MCB hi standard hoti hai. Agar wahan 16A laga di toh patli wiring short hone par pighal jayegi lekin MCB time par trip nahi hogi.
3. Geyser ke liye kaunsi MCB rating best hai?
Normal domestic 15L se 25L (2000 Watt) storage geyser ke liye 16A C-Type MCB lagana standard maana jata hai. Agar aap naya geyser lene ka soch rahe hain, toh dekhein — Best Geyser For Small Family In India.
4. MCB baar-baar trip hone ka kya karan hota hai?
MCB trip hone ke 3 main kaaran hote hain:
- Circuit par safe capacity se zyada load hona (Overload).
- Phase aur Neutral taar ka aapas me touch hona (Short Circuit).
- Appliance ke coil ka body-short hona ya MCB screws ka dheela hona.
5. Single Pole (SP) aur Double Pole (DP) MCB me kya farq hai?
Single Pole MCB sirf phase wire ko disconnect karti hai jabki neutral chalu rehti hai. Double Pole (DP) MCB phase aur neutral dono wires ko ek sath disconnect karti hai, isliye ise hamesha Main Incomer par lagana chahiye.
Conclusion — Electrician Ki Seedhi Salah
MCB koi mamooli switch nahi hai—yeh aapke ghar ka pehla suraksha kavach hai. Hamesha teen baatein yaad rakhein: Sahi MCB Rating, Sahi Tripping Type (B ya C), aur Sahi Wire Size. Agar yeh teeno perfectly matched hain, toh aapka ghar aur parivar short circuit ke har khatre se surakshit hai.
